Skid Units & CAFS Units

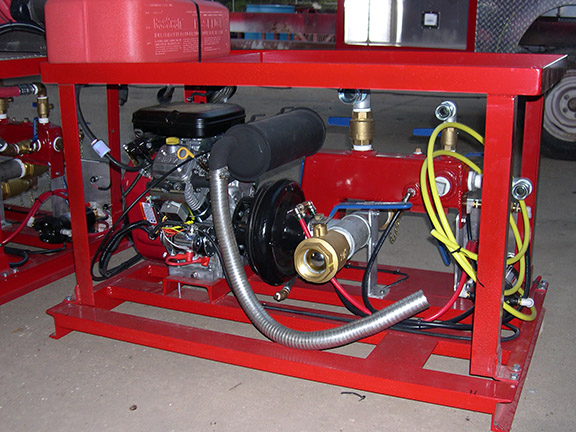

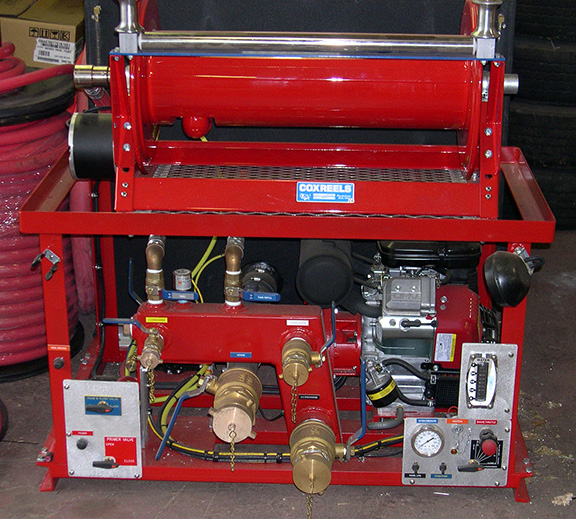

NFPA Skid unit model 18/25/20

• 18 hp B & S Vanguard engine
• Pump 25/20 performance equal to or greater than a Hale HP200
• 400 gallon POLY water tank w/10 gallon internal foam cell
• Water sight level gauge at rear and side
• Foam sight level gauge on tank
• 2-LED water level gauges
• 1-panel
• 1-cab

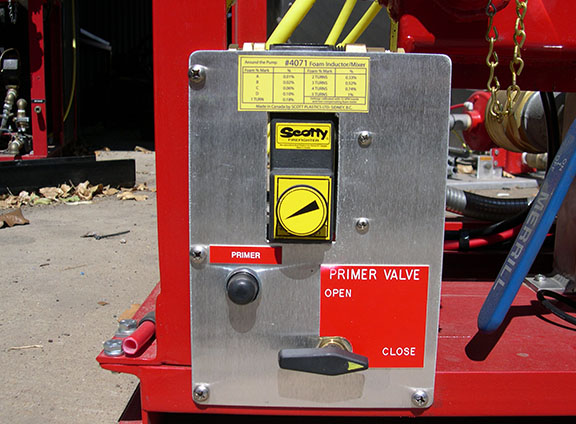

• Scotty/Blizzard Wizard induction
• Illuminated control panel
• Vernier throttle
• Powder Coated manifold with
  (1) 2 1/2" valved discharge
• (1) 2" valved discharge at manifold for feed line for Bumper monitor
• (1) 1" valved discharge to reel
• (1) 1" dual valved discharge for whip line
• (1) 2 1/2" tank to pump valve
• (1) 2 1/2" valved suction/intake w/swivel, strainer & plug
• Electric primer
• (1) Hydrant/2-Spanner set w/mount

Extra 1 1/2" discharge will be capped.

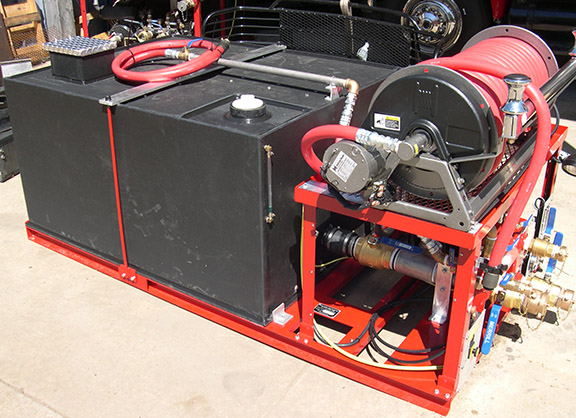

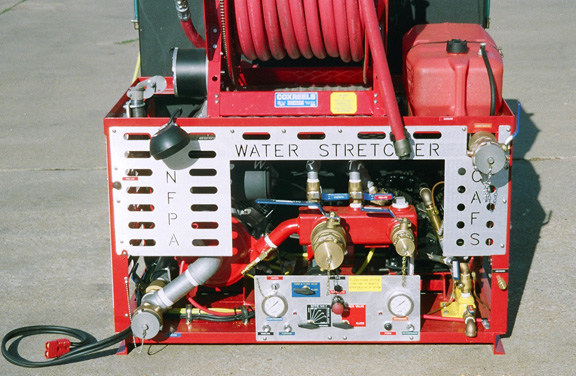

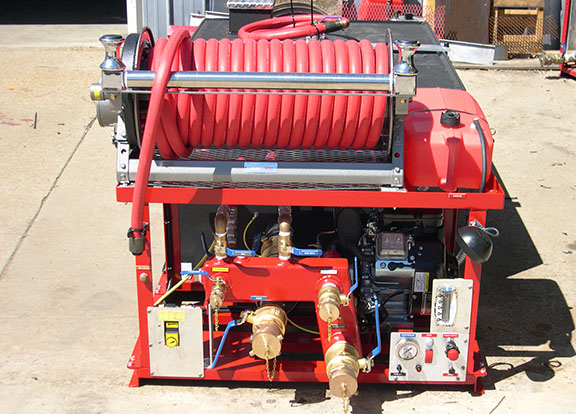

CAFS Unit:
# WS-1
WATERSTRETCHER

• 23/20/15/30 IF 23 HP B&S Engine
• Direct Coupled Pump
• Custom Manifold
• Electric Clutch Piston Air Compressor w/Serpentine Belt
• Foam it 1.1 Sys.
• 6 Gallon Fuel Tank
• CAFS to Reel Line
• Air Chuck
• Electric Primer
• 2 1/2" Direct Tank Fill
• (1) 2 1/2" Dis.
• (1) 1 1/2" Dis.
• (3) 1" Dis.

Call or E-mail for price

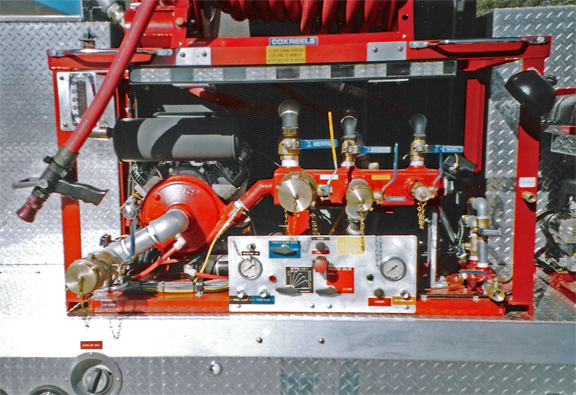

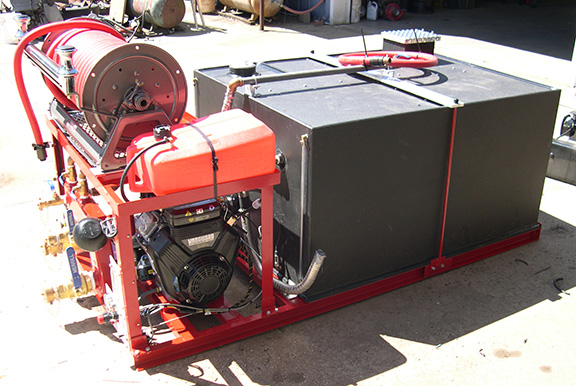

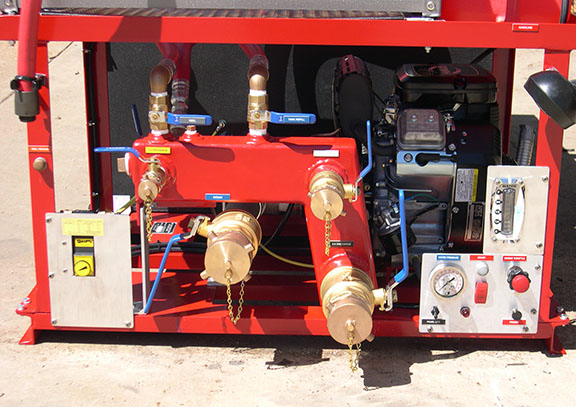

CAFS Unit:
# CA-2

• 23/20/15/30 IF 23 HP B&S Engine
• Direct Coupled Pump
• Electric Clutch Piston Air Compressor
• Foam it 1.1 Sys.
• CAFS to Reel line 1 1/2" Discharge
• Air Chuck
• Custom Manifold
• 6 Gallon Fuel Tank
• Electric Primer
• (1) 2 1/2" Dis.
• (2) 1 1/2" Dis.
• (4) 1" Dis.

Call or E-mail for price

WaterSkid # WSF-1

• 18/20/15 IF 18 HP B&S Engine
• Direct Coupled Pump
• Custom Manifold w/Foam injection Port
• Foam it 1.1 Sys.
• 6 Gallon Fuel Tank
• Electric Primer
• (1) 2 1/2" Dis.
• (2) 1 1/2" Dis.
• (3) 1" Dis.
• (1) 2 1/2" Suction

Call or E-mail for price

Water Skid w/ Foam It System
# WSF-2

• 18/20/15 IF 18 HP B&S Engine
• Direct Coupled Pump
• Custom Manifold
• Foam it 1.1 Sys.
• 100' 1 1/2" Preconnect - Hoselay
• 6 Gallon Fuel Tank
• Electric Primer
• (2) 1 1/2" Dis.
• (3) 1" Dis.
• (1) 2 1/2" Suction

Call or E-mail for price

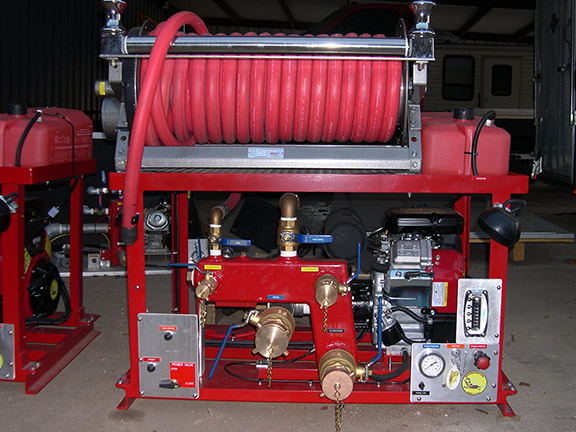

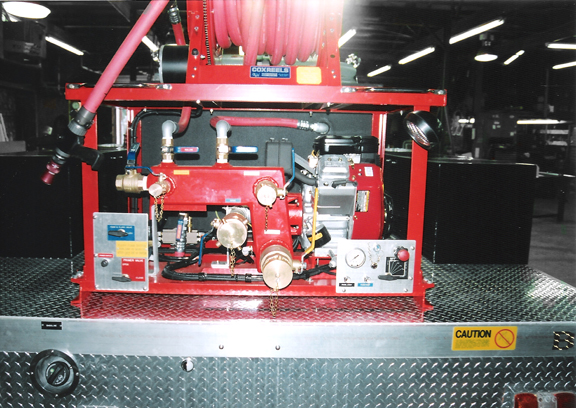

NFPA Skid Unit Model 18/20/15/1F

Unit fitted with:

• Hydra Pump 20/15 5yr warranty
• 18HP B&S engine - Electric start
• Scotty Foam Sys.
• Electric Reel w/100' 1" hose & large nozzle
• Variety of gallonage water tanks
• Mounted on a powder coated skid
• Recharge manifold & powder coated - 10yr warranty
• Brass fittings and Full Flow brass Quarter turn Valves - 6yr warranty

Call or E-mail for price

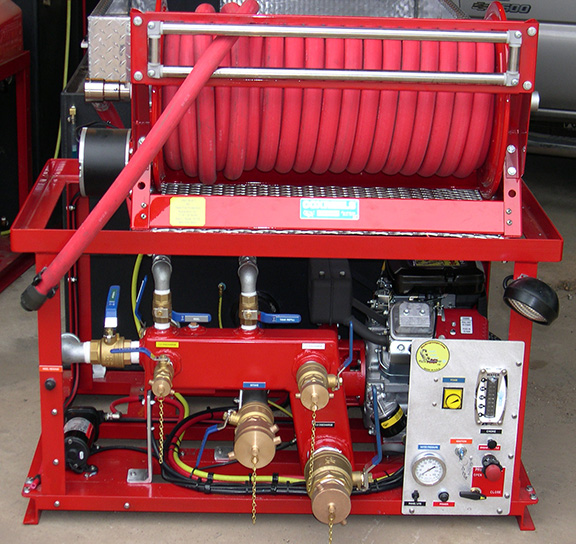

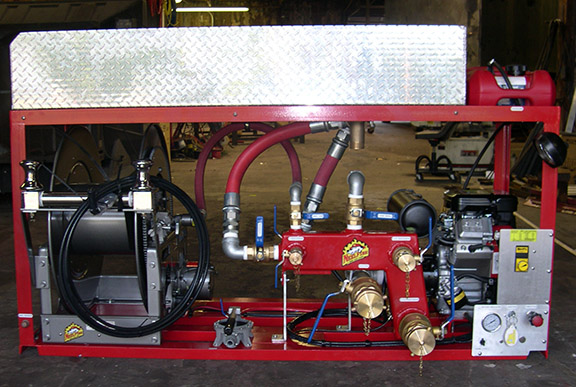

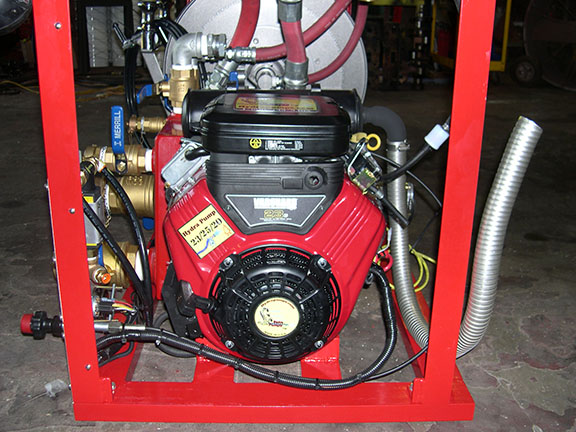

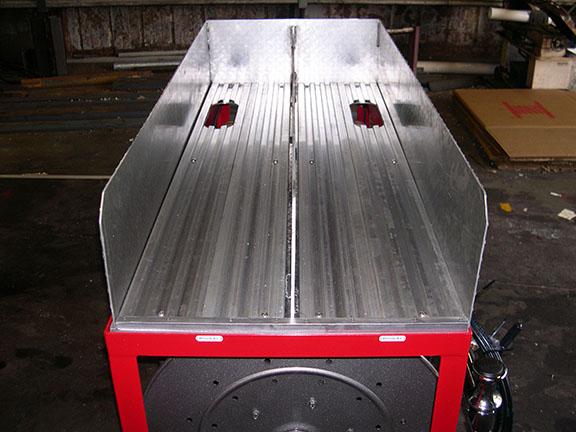

NFPA Skid Unit Model 23/25/20

Unit fitted with:

• Hydra Pump 25/20 - 5yr warranty
• 23HP B&S Engine - Electric start
• Injection Foam Sys.
• Variety of gallonage water tanks
• Electric Reel w/100' 1" nozzle
• Mounted on powder coated Skid
• Discharge manifold - powder coated - 10yr warranty
• Brass fittings & Brass Fuel Flow, two Quarter turn Valves - 6yr warranty
• Hydra Engine & HP200 pump available

Call or E-mail for price

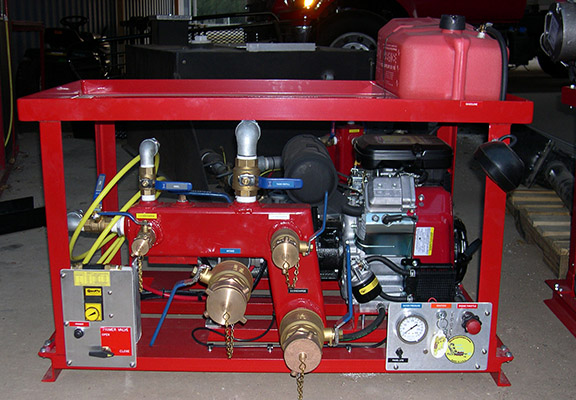

Unit Model 18/20/15 Hydra Pump

• 18HP B&S Engine
• Electric Start
• Scotty Foam System
• Variety of gallonage water tanks
• Electric Reel w/100' 1" nozzle
• Mounted on powder coated Skid
• Discharge manifold - powder coated - 10yr warranty
• Brass fittings & Brass Fuel Flow, two Quarter turn Valves - 6yr warranty
• Hydra Engine & HP200 pump available

Call or E-mail for price
