Lights and Sounds


Chameleon LED Signal Sticks


LED Signal Sticks
  • Two or three interwoven LED colors in each light
    • Directional stick uses 192 amber LEDs
    • Warning signal uses 224 LEDs in your choice of blue, green, red or white LEDs
  • Black, anodized aluminium housing with (T-slot) sliding bolt mounting channel on back and bottom.
  • Clear Lexan lens cover protects from dust and debris.
  • Waterproof model available. (additional charge)
  • Signal Stick: 1 15/16"H x 41"W x 1 15/16"D Deluxe Controller: 1 5/16"H x 6"W x 5 11/16"D

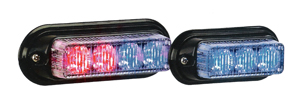

Galaxy LED Lights


Galaxy LEDs
  • Three or four 1-watt LEDs in each surface-mount lighthead
  • Diffusing lens provides wide horizontal light dispersion
  • Multiple unit synchronization
  • User-selectable flash patterns
  • Galaxy III Lights have a self-contained flasher with 12 flash patterns and a solid array of amber, blue, red or white LEDs
  • Purple Galaxy III and IV Lights are also available (White LEDs with a purple ribbed lens cover)
  • Electronics are fully sealed with epoxy resin for protection from vibration, impact and moisture
  • Compact, die-cast aluminium housing
  • Galaxy III: 1 3/8"H x 3 7/8"L x 1 5/8"D / 4.7oz // 12V / 0.35 amps max
    Galaxy IV: 1 3/8"H x 4 3/4"L x 1 5/8"D / 5.8oz // 12V / 0.7 amps max

Full-Sized LED Light Bars


Full-Sized LED Light Bars
  • Low-profile, single-level design reduces wind resistance and improves fuel efficiency
  • Customize with LEDs, Hyper-Brite LEDs, Chameleon LEDs, alley & take-down lights
  • Optional Signal Stick or Chameleon Signal Stick provides additional warning capacity
  • LED and Hyper-Brite LED panels are available in amber, blue, green, red and white
  • Chameleon LED panels feature two LED colors interwoven in each panel
  • 8-Output LED Flasher with selectable patterns & head mapping
  • All modules are field-replaceable with standard tools
  • Heavy-duty extruded aluminium base
  • Clear Lexan housing and black ABS plastic cover are UV-protected
  • Light Bar: 2 3/4"H x 48 5/8"W x 12 1/4"D (4 1/4" overall height including mounting feet) Controller: 1 5/16"H x 6"V x 5 11/16"D (for models with Signal Sticks or Chameleon Signal Sticks) // 12V / 25 amps max

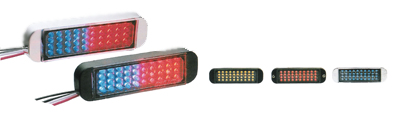

Micro-Lite LED Lights


Micro-Lite LED Lights
  • Waterproof lights mount on dash, deck, grille, trunk and mirror
  • 40 high-intensity LEDs
  • Solid or bi-color arrays of amber, blue, green, red or white LEDs
  • Black ABS plastic or chrome housings
  • Clear lens cover
  • Knock-out holes for flush- or bail-mounting applications
  • Available individually or in two- or four-head kits
  • 1 1/2"H x 5 1/8"W x 11/16"D / 3.2oz
  • 12V / 0.5 amps max, each light

Dash-Mount Siren


Dash-Mount Siren

Full-Feature Plus Siren

  • 100 Watts
  • Horn Ring Compatible
  • Illuminated Faceplate
  • 2 1/4"H x 6"W x 6 1/2"D

12 Operational Modes

  • Phaser
  • Tap
  • Wail
  • Yelp
  • High-Low
  • Warble
  • Whoop
  • PA
  • Standby
  • Radio Rebroadcast
  • Air Horn
  • Intersection Mode

Four Function Switch Boxes


Four Function Switch Boxes
  • 2 1/4"D x 4 1/2"W x 3 7/8"D
  • Standard with Backlit Legends
     (4) Individually fused, 20-amp switches
  • Super Duty with Backlit Legends
     (1) Switch with 40-amp relay & 40-amp circuit breaker
      (3) Individually fused, 20-amp switches
  • Standard with Labels
     (4) Individually fused, 20-amp switches
  • Super Duty with Labels
     (1) Switch with 40-amp relay & 40-amp circuit breaker
      (3) Individually fused, 20-amp switches

Six Function Switch Box


Six Function Switch Box
  • 2 1/4"H x 6"W x 5"D
  • Standard - (6) Individually fused, 20-amp switches
  • Super Duty
     (1) Switch with 40-amp relay & 40-amp circuit breaker. (5) Individually fused, 20-amp switches

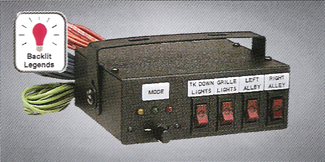

Seven Function Switch Box


Seven Function Switch Box
  • Three-position slide switch with indicator lights safely controls primary and secondary functions while in pursuit.
  • 2 1/4"H x 6"W x 5"D
  • Standard Seven Function Switch Box
     (1) Three-position slide switch. Each position has a 40-amp relay with a 30-amp (Type 2) automatic re-set circuit breaker. (4) Individually fused, 20-amp switches control auxiliary functions.

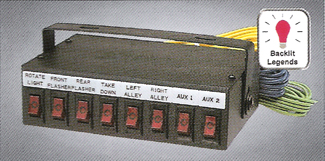

Eight Function Switch Box


Eight Function Switch Box
  • 2 1/4"D x 7 3/8"W x 5"D
  • Standard - (8) Individually fused, 20-amp switches
  • Super Duty
     (1)Switch with 40-amp relay & 40-amp circuit breaker. (7)Individually fused, 20-amp switches.
  • Super Duty Plus
     (2)Switches with 40-amp relays & 40-amp circuit breakers. (6)Individually fused, 20-amp switches

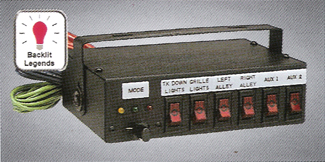

Nine Function Switch Box


Nine Function Switch Box
  • Three-position slide switch with indicator lights safely controls primary and secondary functions while in pursuit.
  • 2 1/4"H x 7 3/8"W x 5"D
  • Standard Nine Function Switch Box
     (1)Three-position slide switch. Each position has a 40-amp relay with a 30-amp (Type 2) automatic re-set circuit breaker. (6)Individually fused, 20-amp switches control auxiliary functions.

100 Watt Speakers

Concealed Scoop Speaker


Concealed Scoop Speaker
  • Metal (pictured) or plastic scoop
  • 4 1/2"D x 10 3/8"W x 4 1/4"D

Round Bell Speaker


Round Bell Speaker
  • Black or polished aluminium bell
  • 6"H x 6"W x 5 1/2"D

Standard-Profile Light Bar Speaker


Standard-Profile Light Bar Speaker
  • Black ABS plastic bell
  • 5 1/4"H x 8"W x 6"D

Low-Profile Light Bar Speaker


Low-Profile Light Bar Speaker
  • Black ABS plastic scoop
  • 4 1/2"H x 6 3/4"W x 6"D

Slim Speaker


Slim Speaker
  • Thin design installs in small spaces
  • Three sound channels provide a clear tone with a long distance spread
  • Cast aluminium housing
  • 7 7/16"H x 7 3/4"W x 3"D
